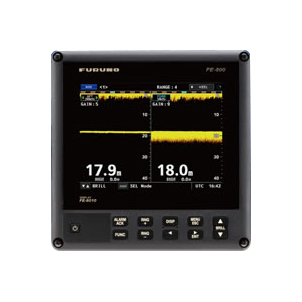

The FURUNO navigational sounder FE-800 displays the clearance below the ship in dual-frequency operation.

Display the combination of the acquired contour and formation echo readings.

Recording Interval Settings	The amount of data used for storage and playback
5 sec	1 h
1 min	12 h
2 min	24 h

Dual frequency display (50/200 kHz)*

The depth of FORE and AFT positions can be displayed simultaneously.

▶Provide multiple display modes: NAV, OS DATA and HISTORY

▶High Contrast 8.4 "LCD

▶When connected to the FURUNO remote display RD-20/50, the depth information can be observed at a remote location.

▶An optional printer interface can be used to print out echograms

▶Connecting PC with optional data recording software can store, compile and print past data of echogram through PC.

▶Prepare BAM (Bridge Alert Management)**

It meets the specific requirements of alarm and interconnection for bridge alarm management in IMO MSC.302(87)

** BAM functions will be implemented as software updates after the release of products in early 2015.

▶Depth data over the past 24 hours can be stored in internal memory

For the amount of data stored and played on FE-800, see "HISTORY" on the right page. With the optional PC software, when the recording interval is set to 5 seconds, sound information can be stored and played for 24 hours.

▶Visual and auditory alerts

When the water depth below the transducer is shallower than the preset depth, the FE-800 will give an alarm. When the seabed is lost due to reduced or out-of-range power supply, an alarm will be issued.
