KODEN GPS Compass KGC-222

KODEN GPS Compass KGC-222

  • Classification:Marine Internal and External Communication Navigation System
  • call:18796778888
    Contact us

    Features:

    Backup sensor built-in

    Pitch/roll and heaving data output

    3 heading data output ports expandable to 5 ports

    KGC-222 consists of two main components, display and antenna. Display unit has processor, receiver and LCD display built-in.

    KGC-222 has internal electronic compass as backup sensor. This enables the backup sensor to output heading even if the GPS signals are interrupted in such case as the vessel passing under a bridge.

    KGC-222 can also output pitch/ roll and heaving data. When KGC-222 is used with an echo sounder with heaving compensation function, you can obtain stable sea bottom without effect from heaves and waves.

    It has 3 heading data output ports. Up to 5 ports will be available with connecting optional junction box.

    It can be equipped at flying bridge with its high water protection capability.

    Specifications :

    Mode

    KGC-222

    Components

    display unit

    GPS antenna


    KGC-222 MU

    GA-12

    Display size and type LCD with backlight (128 X 64 pixels, effective picture area: 85.7 54.4 mm)
    Receiving frequency 1575.42MHz±1MHz
    Receiving channel 16 channel parallel
    Sensitivity Better than -130 dBm
    Setting time 2minutes(at standard hot-start time)
    Heading accuracy 1 rms
    Heading resolution 0.1°
    Maximum rate of turn 45°/s
    Maximum follow-up acceleration 1g
    aximum role/pitch angle 30°
    Base line length 0.5m

    Time to position fix

    Cold start

    Warm start

    Hot start


    50 sec(standard)

    45 sec(standard)

    20 sec(standard)

    Positioning accuracy

    Position

    velocity


    GPS: 10m(2 drms, PDOP 3 or less)

    1m/sec(rms, SA:OFF,PDOP:3 or less)

    Datum

    88(WGS-84, Tokyo etc.)

    Output data

    Format

    Heading data sentence

    Navigation data sentence


    NMEA 0183 Ver.2.0

    ATT,HDM,HDT,HVE,ROT,PKODG21

    DTM. GGA GLL GSA GSV. MSS. RMC, VTG, ZDA,PKODA, PKODG1, PKODG7, PKODQ

    Data level RS-422
    Output current 20mA
    Power supply 10.8 to 31.2VDC
    Power consumption 9W or less(at 24VDC)

    Operating temperature

    GPS antenna

    Display unit


    -25℃ to +55℃

    -15℃ to +55℃

    Water protection

    GPS antenna

    Display unit


    IPX6

    IPX4

    Equipment list:

    Standard equipment Display unit 1set
    GPS anntena 1set
    DC power cable (1 BM} 1
    Antenna cable (15M) 1set
    Inst allat ion material, Operation manual 1set
    Options

    Connecting cable,Junction box,Power rectifier,AC power Cable

    Flush mount kit,Antenna cable extension kit,Conversion cable,Connector


    Connecting drawings:

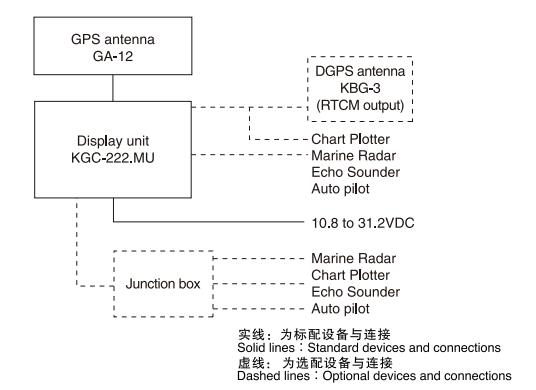

    28-4

    Dimension and weight:

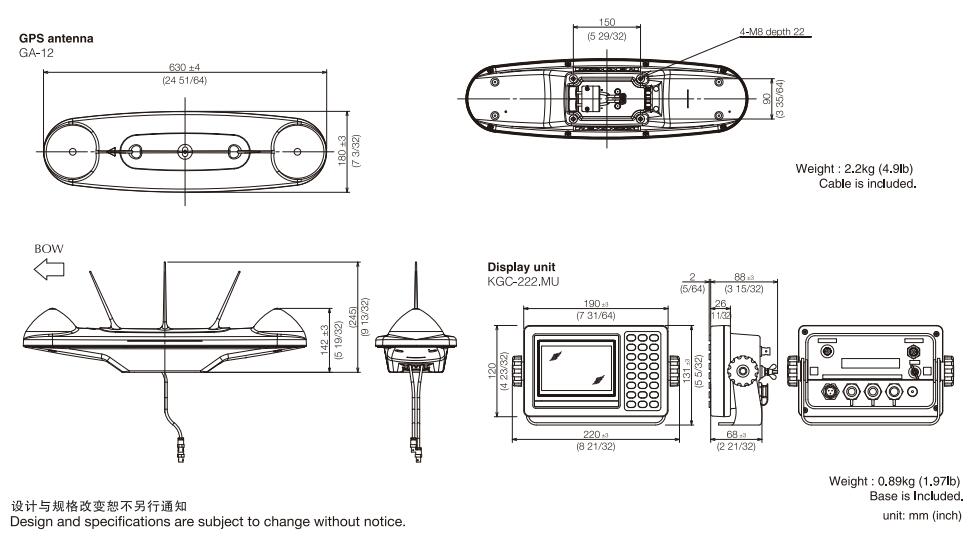

    28-5
